SuperDART® removes virtually all bioburden from all channels in just ONE PASS™

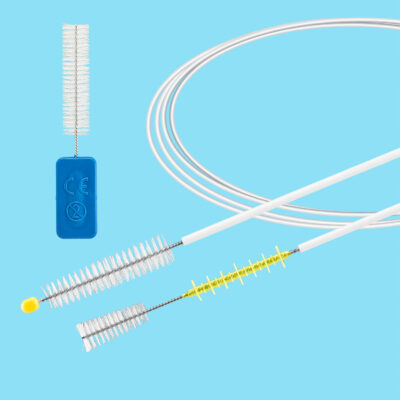

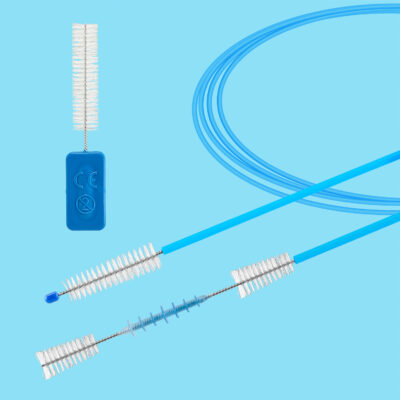

The SuperDART® Brush is a validated, three-stage, single-use endoscope channel cleaning device used to effectively eliminate debris from scratched channels, thin biofilm present in channels, and debris from channel junctions.
Design- Cleans Scopes in ONE PASS vs. 3!
Stage 1: The Robust Leading Brush dislodges debris from the channel walls.
Stage 2: The Squeegee multi-disk wiper conforms to channel design and pulls in enzymatic, maintaining appropriate contact with cleaning chemistry and pulls bioburden out of channel.
Stage 3: The Fine Bristled Tail Brush meticulously tackles remaining debris and biofilm in scratches, dents and channel imperfections, ensuring a pristine finish before the final flush with a detergent solution.
The SuperDART® ONE PASS Brush provides advantages not found with other pull-through brushes, including:
- Validated high-level cleaning results
- Time savings; reduces brushing time, swiping channels once for an effective clean
- Reduced fatigue on nurses and technicians
- Multiple lengths and sizes for a range of endoscope channels
- Calibrated and color-coded SmartSTOP™ innovative feature:
SmartSTOP™ reduces mistakes and saves time by ensuring the correct brush is inserted into the correct channel size. Accidental channel jams are prevented, channel flaws are detected and scopes are protected.
- Blue SmartSTOP™- Channel size range 2.0-2.8MM
- Yellow SmartSTOP™- Channel size range 2.8-4.2MM
Technical Specifications
Channel Size Range 2.0-2.8mm (Ideal for cystoscopes, bronchoscopes, intubation scopes)| SuperDART® Part Number | Kit Part Number | Catheter Length (cm) | Catheter Diameter (mm) | Units/box |
| 9293 | 9399 | 240 | 1.6 | 25 |
| 9253 | 9355 | 122 | 1.6 | 25 |
| 9233 | 9333 | 85 | 1.6 | 25 |
| SuperDART® Part Number | Kit Part Number | Catheter Length (cm) | Catheter Diameter (mm) | Units/box |
| 9292 | 9188 | 250 | 1.7 | 25 |
Frequently Asked Questions
The SuperDART® ONE PASS™ Brush w/SmartSTOP™ is a three-stage, single-use endoscope channel cleaning brush designed to remove debris from endoscope channels in a single pull-through pass.
The SuperDART® ONE PASS™ Brush uses a three stage design that allows effective cleaning in a single pass. The leading brush loosens debris from the channel walls, the squeegee section sweeps and pulls loosened soil out of the lumen, and the tail brush captures any remaining particles. Together, these three stages enable consistent one pass cleaning and help reduce the need for repeated brushing.
The device is designed to remove debris from channels in a single pull-through pass, eliminating the need for 3 passes, or a subjective amount of passes to effectively clean.
The device is used during manual cleaning to pull through endoscope channels according to device IFUs.
The three-stage brush design allows technicians to clean channels using a single pull-through motion.
SmartSTOP™ is a calibrated and color-coded feature that helps ensure the correct brush is selected for the appropriate channel size.
